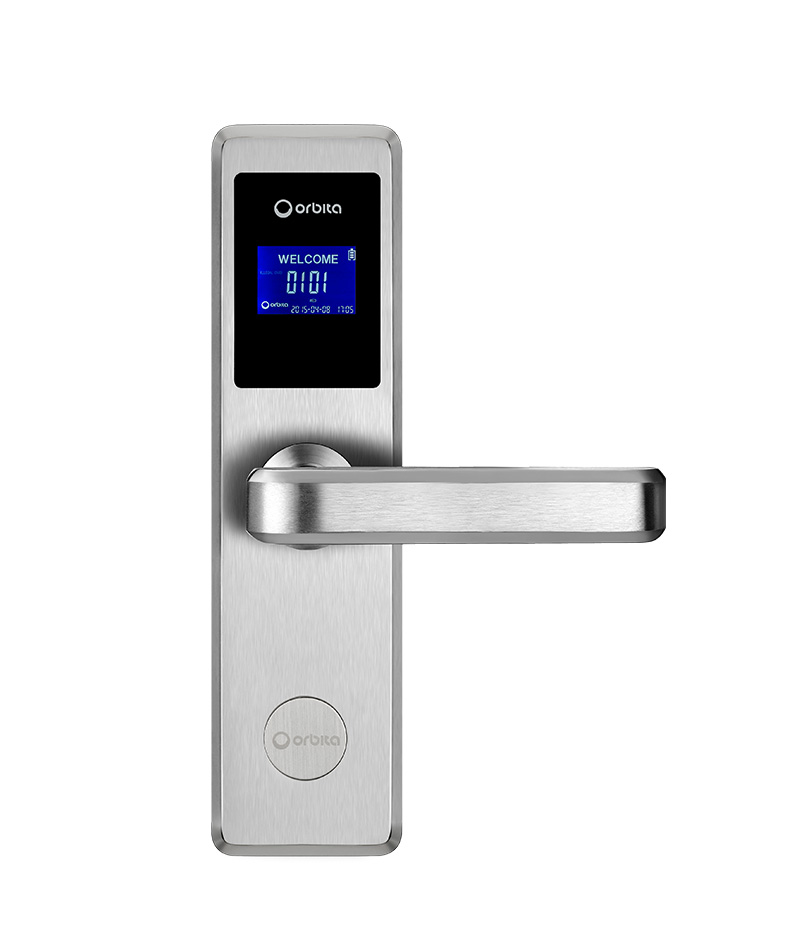

E4031 hotel lock:LCD screen showing battery status

E4031 Hotel Lock: LCD screen showing : Welcome,Room Number,Date,Time,Weekday,Battery Status,Wrong Operation Indication.

June-22 2020
  • Model: E4031
  • Material: 304 stainless steel moisture proof
  • Working Voltage:DC6V or 4 AA Alkaline batteries
  • Power Consumption: Static Load<30μa , Dynamic Load <200Ma
  • Working Humidity:20%-90%     Working Temperature:-20℃-60℃
  • Keycard Option: Mifare 1 card
  • Dimension of External Panel: L280mmxW75mmxH22mm

FUNTIONAL CHARACTERISTICS

Orbita LCD Display Hotel RFID Lock:

  1. LCD display show Welcome、Room Number 、Date、Time、Weekday 、Battery Status 、Wrong Operation Indication
  2. Interface with most of the PMS system,Fidelio/Opera registered
  3. CE & FCC Certified
  4. Stainless steel color lasts more than 10 years

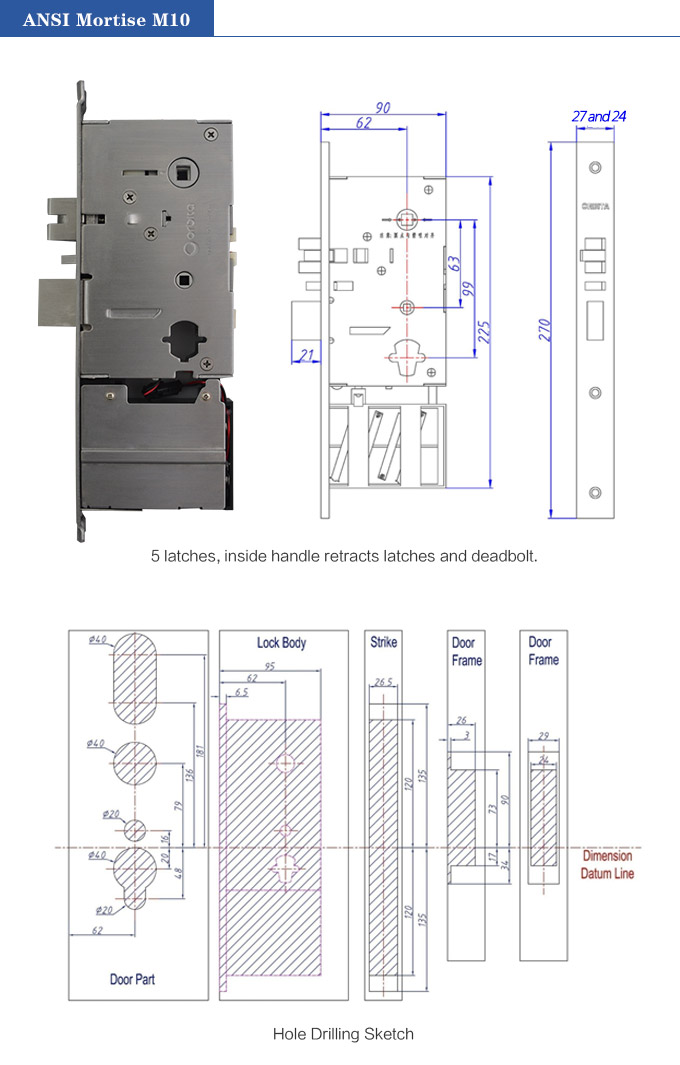

  5. ANSI Standard mortise
  6. Inside Deadbolt,Inside handle retracts latches and deadbolt
  7. Mifare 1K card,compatible with Mifare Energy Saver
  8. Lost Guest Card suspension simply by issuing a new guest card with suspending function
  9. Low battery voltage warning.(Lower then 3.5V).
  10. Self Error detecting by LED and “Beep”
  11. Passage Model function available
  12. Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis Court/Gym...etc

Product Pictures
