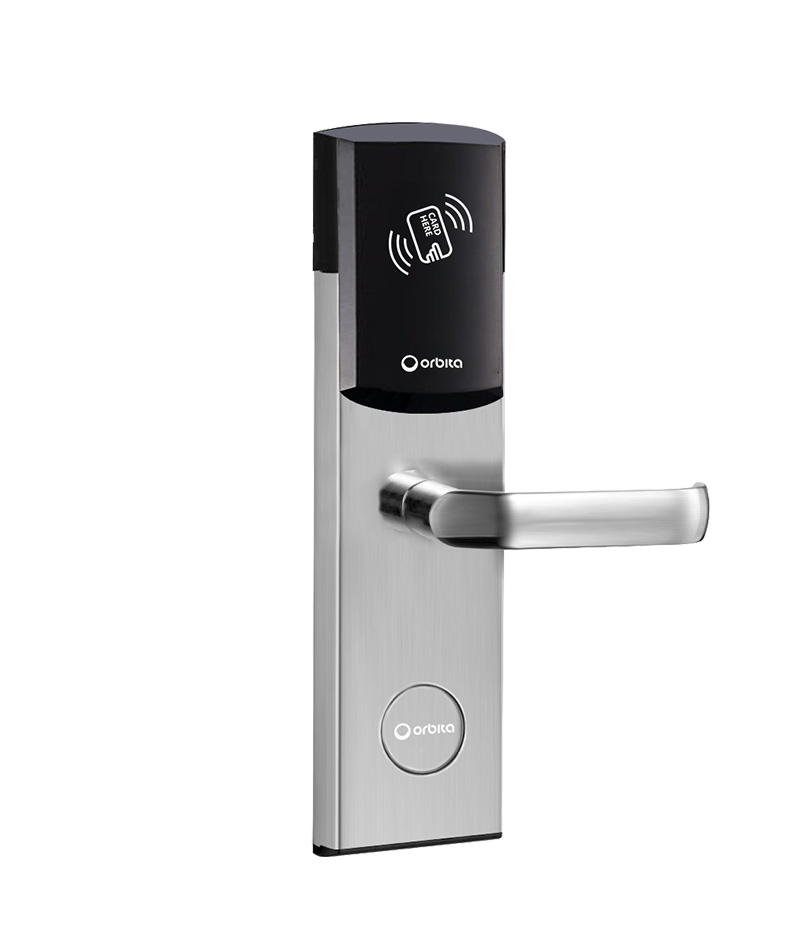

ORBITA E3092 smart hotel lock,Stainless steel

ANSI standard mortise Stainless steel color lasts more than 10 years

June-03 2020

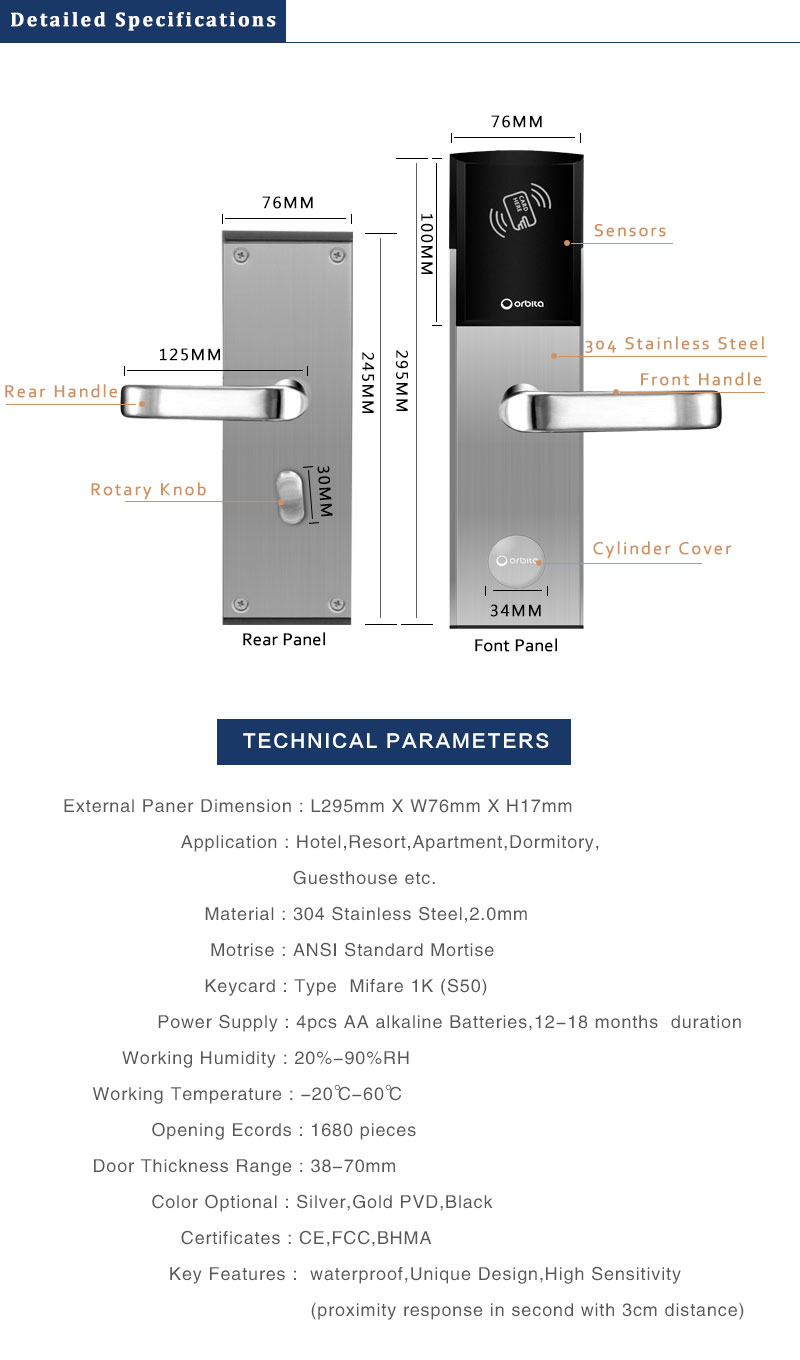

  • Model: E3092
  • Material: 304 Stainless Steel
  • Working Voltage:DC6V or 4 AA Alkaline batteries
  • Power Consumption: Static Load<30μa ,Dynamic Load <200Ma
  • Working Humidity:20% - 90%     Working Temperature:-20℃ - 60℃
  • Keycard Option: Mifare 1 card
  • Dimension of External Panel: L295mm x W76mm X H17mm

FUNTIONAL CHARACTERISTICS

  • Interface with most of the PMS system,Fidelio/Opera registered
  • CE & FCC Certified
  • Stainless steel color lasts more than 10 years
  • ANSI Standard mortise
  • Inside Deadbolt,Inside handle retracts latches and deadbolt
  • Mifare 1K card,compatible with Mifare Energy Saver
  • Lost Guest Card suspension simply by issuing a new guest card with suspending function
  • Multiple operators with different card issuing authorization
  • Low battery voltage warning.(Lower then 3.5V).
  • Self Error detecting with “Beep”
  • Passage Model function available
  • Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis Court/Gym...etc

Product Pictures
