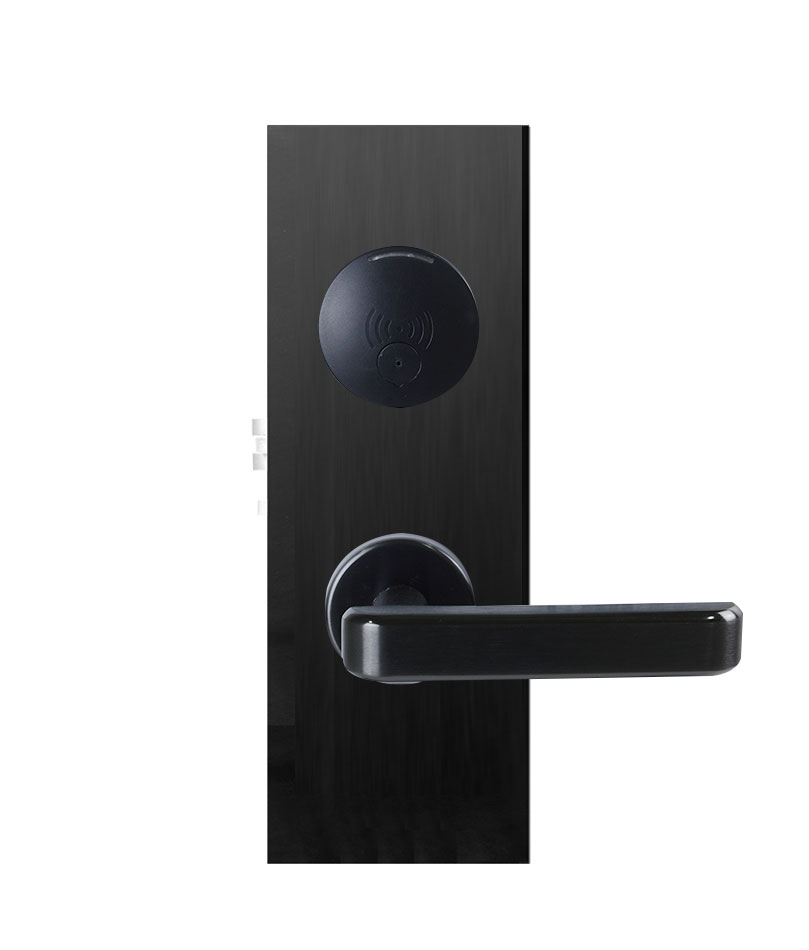

ORBITA S3479 hotel lock

Interface with most of the PMS system,Fidelio/Opera registered CE FCC Certified Stainless steel color lasts more than 10 years ANSI Standard mortise Inside Deadbolt,Inside handle retracts latches and deadbolt Mifare 1K card,compatible with

July-01 2020
  • Model: S3479
  • Material: Stainless Steel,Moisture Proof,Fire Reted
  • Working Voltage:DC6V or 4 AAA Alkaline batteries
  • Power Consumption: Static Load<30μa , Dynamic Load <200Ma
  • Working Humidity:20%-90%     Working Temperature:-20℃~60℃
  • Keycard Option: Mifare 1 card
  • Dimension of External Panel: L60mmxW60mmxH12mm

FUNTIONAL CHARACTERISTICS

  1. Interface with most of the PMS system,Fidelio/Opera registered
  2. CE & FCC Certified
  3. Stainless steel color lasts more than 10 years

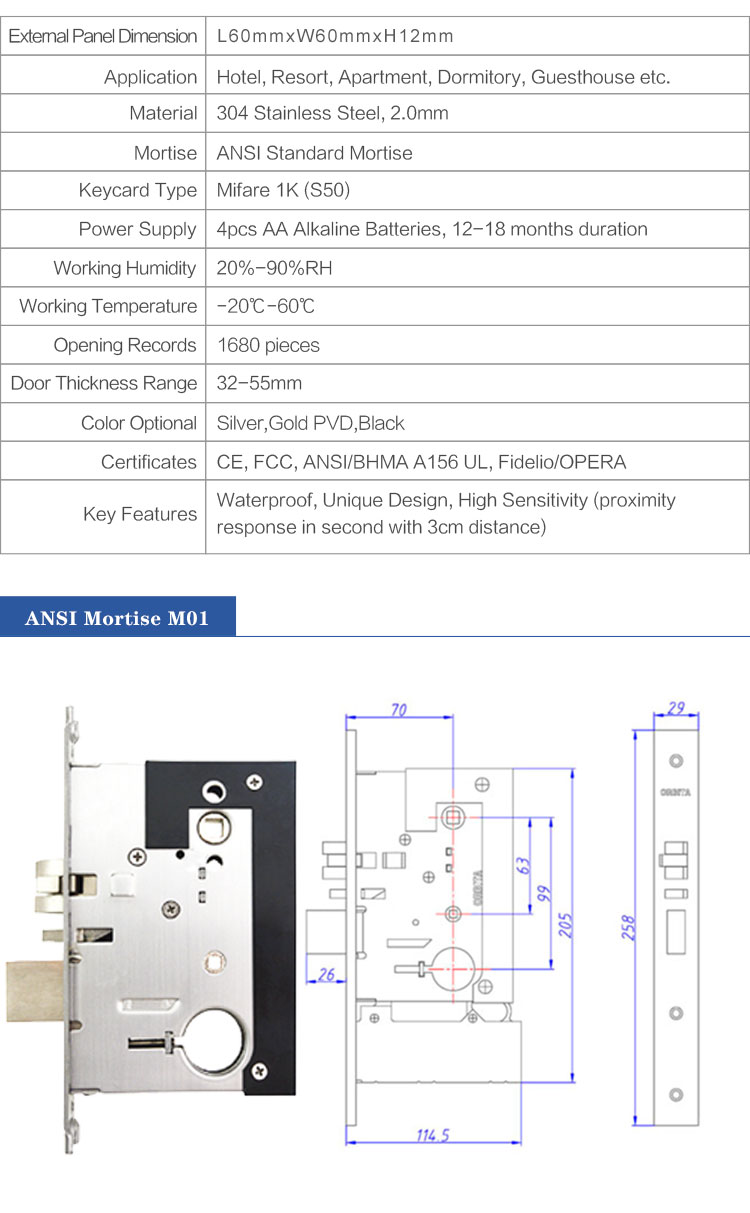

  4. ANSI Standard mortise
  5. Inside Deadbolt,Inside handle retracts latches and deadbolt
  6. Mifare 1K card,compatible with Mifare Energy Saver
  7. Lost Guest Card suspension simply by issuing a new guest card with suspending function
  8. Multiple operators with different card issuing authorization
  9. Low battery voltage warning.(Lower then 3.5V).
  10. Self Error detecting with “Beep”
  11. Passage Model function available
  12. Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis Court/Gym...etc

Product Pictures
